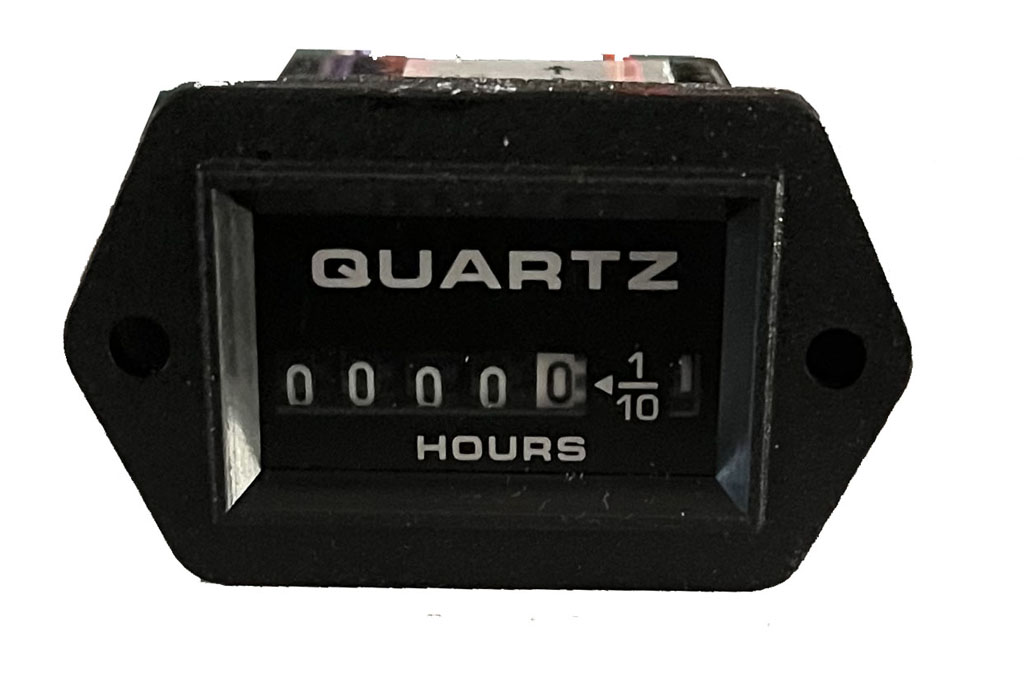

Understanding the Hobbs Meter in Flight Simulators
The Hobbs Meter is a crucial instrument in flight simulators, diligently recording the operational duration of your simulation. Specifically, it tracks this time in hours, providing a precise measure of simulator usage.
Activation Methods
There are two primary methods by which the Hobbs Meter can be activated:
- Battery On Enable: This setting initiates the Hobbs Meter’s timekeeping function the moment the simulator’s virtual battery is switched on.
- RPM On Enable: Alternatively, the meter can be configured to begin counting only when it detects engine revolutions per minute (RPM), signifying that the simulator’s engines are actively running.
Power Requirements and Connectivity

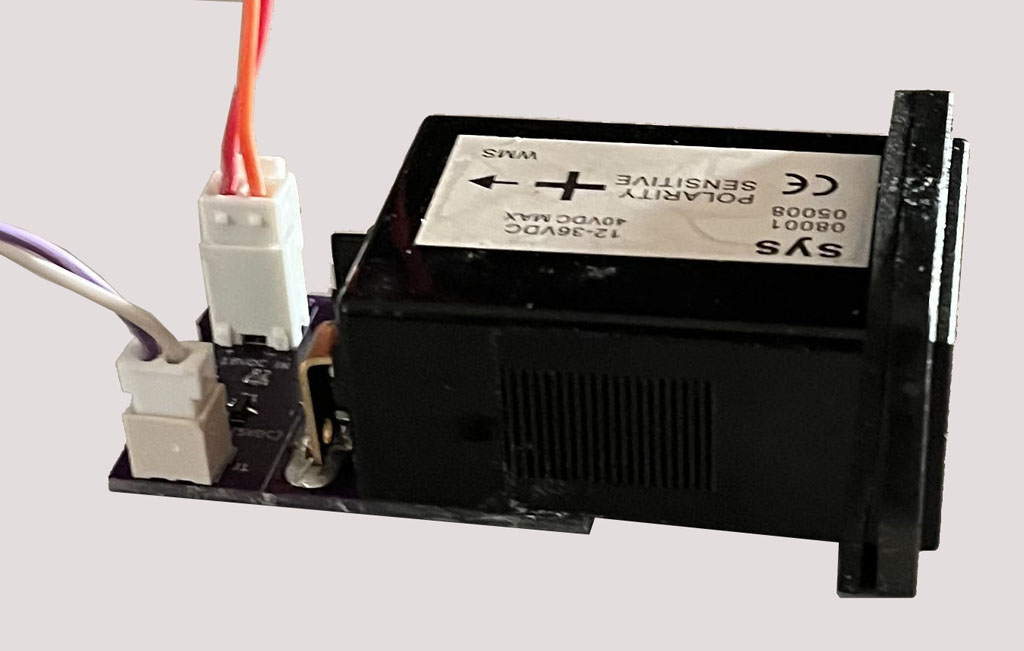

For accurate operation, the Hobbs Meter gauge requires a power input ranging from 5V to 18V DC. This can be conveniently supplied by a standard ATX power supply.
To enable communication between the Hobbs Meter module and your computer, an Aces I/O module is necessary. This module acts as an interface, translating the meter’s data into a format your computer can understand and process, thereby allowing for integration with your simulation software.
Do you have any further questions about setting up or using the Hobbs Meter with your flight simulator?
Here are the measurements:
- Height: 59 mm
- Width: 59 mm
- Depth: 75 mm
- Weight: 50 grams
To fix it in place, you’ll need two screws to attach it properly to whatever surface you’re putting it on these screws are supplied.
Important Notice: This Hobbs Meter gauge is only meant for simulator use. You absolutely must not fit or use it in a real aircraft under any circumstances.
