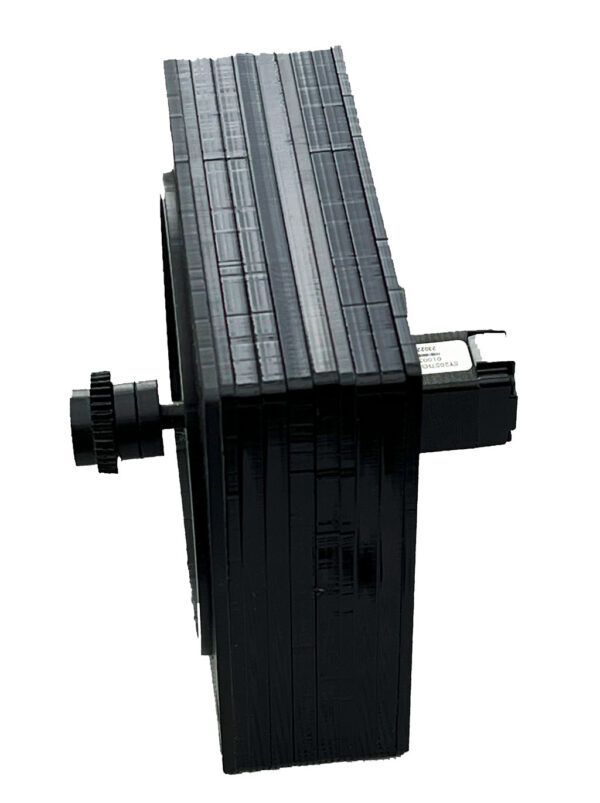

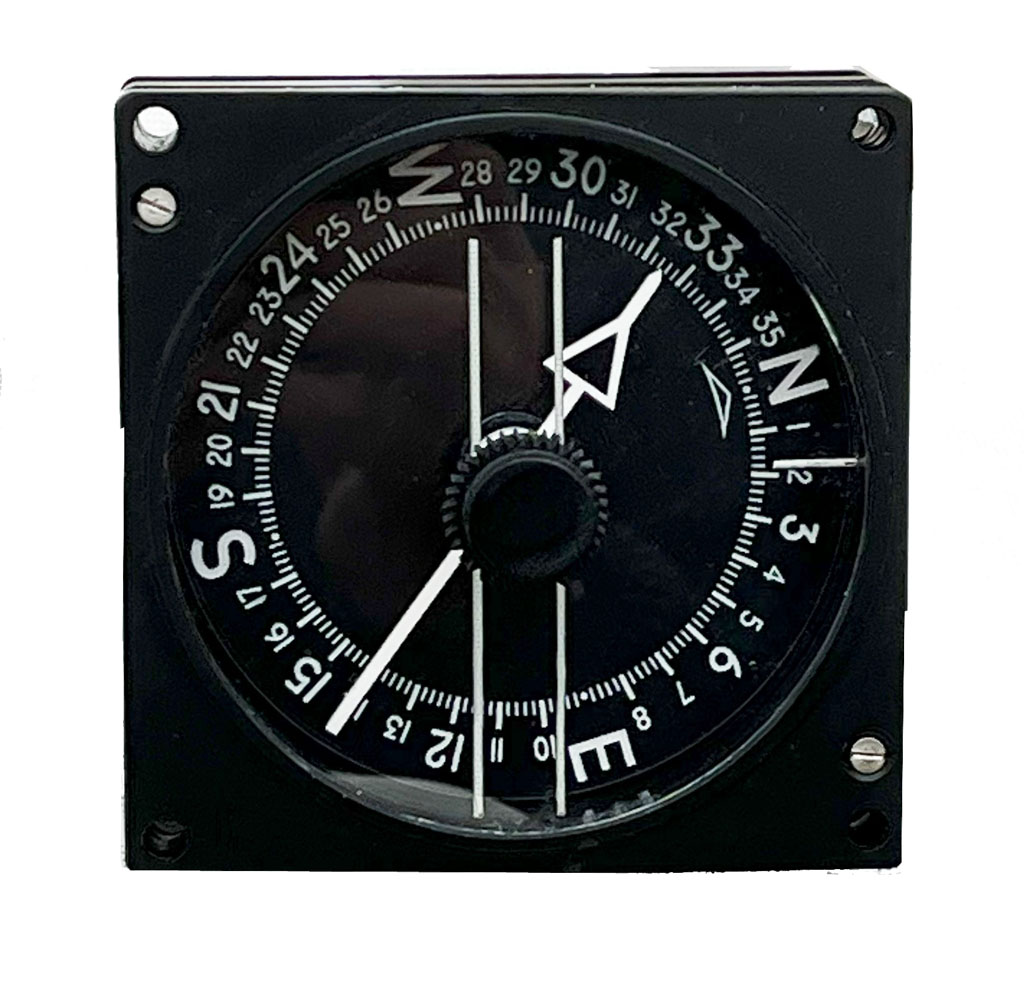

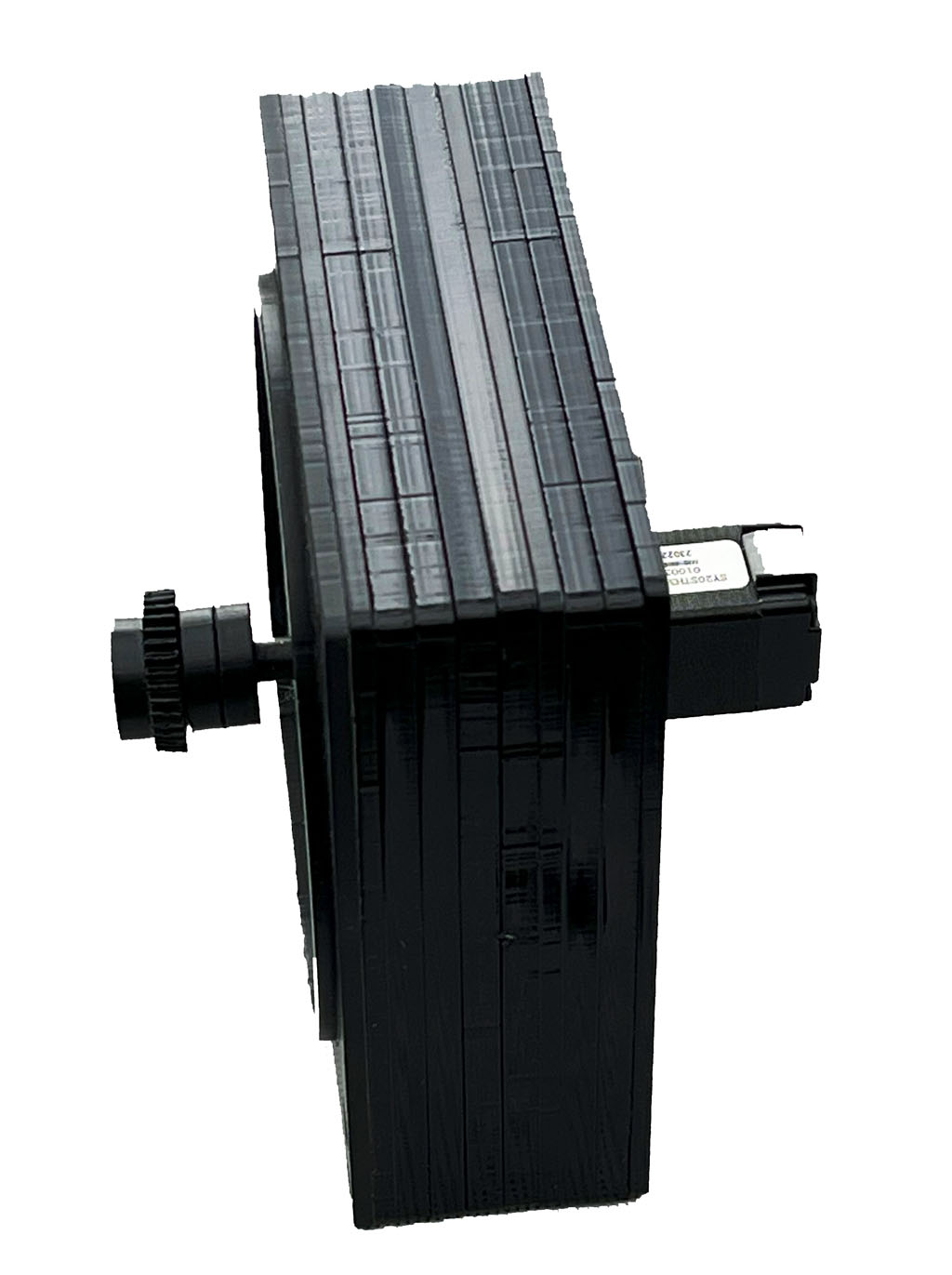

The Lancaster Pilot’s DR Repeater Compass Mk1 Gauge Gauge is a beautiful replica of the Lancaster DR Compass Pilot’s Repeater Mk1 6A/1584 Gauge. It has a vintage look and a range 0 to 359 Degrees.
The needle movement is very smooth due to the use of stepper motors. The gauge is completely assembled and tested and gives smooth indications thanks to stepper motor technology.
height 82 mm
width 82 mm
depth 46 mm
weight 90 gr
Mounting 4 bolts (Supplied)
Power requirements:
power from Aces Stepper Module
Connection
6 pin connector flat cable (6 wires flat cable) requires 1 free ports on Aces Stepper Module.
You will need the Aces Stepper Module plus the Aces software to connect the gauge to the computer.
This Gauge is not to be used in any real aircraft it is for simulator use only.
