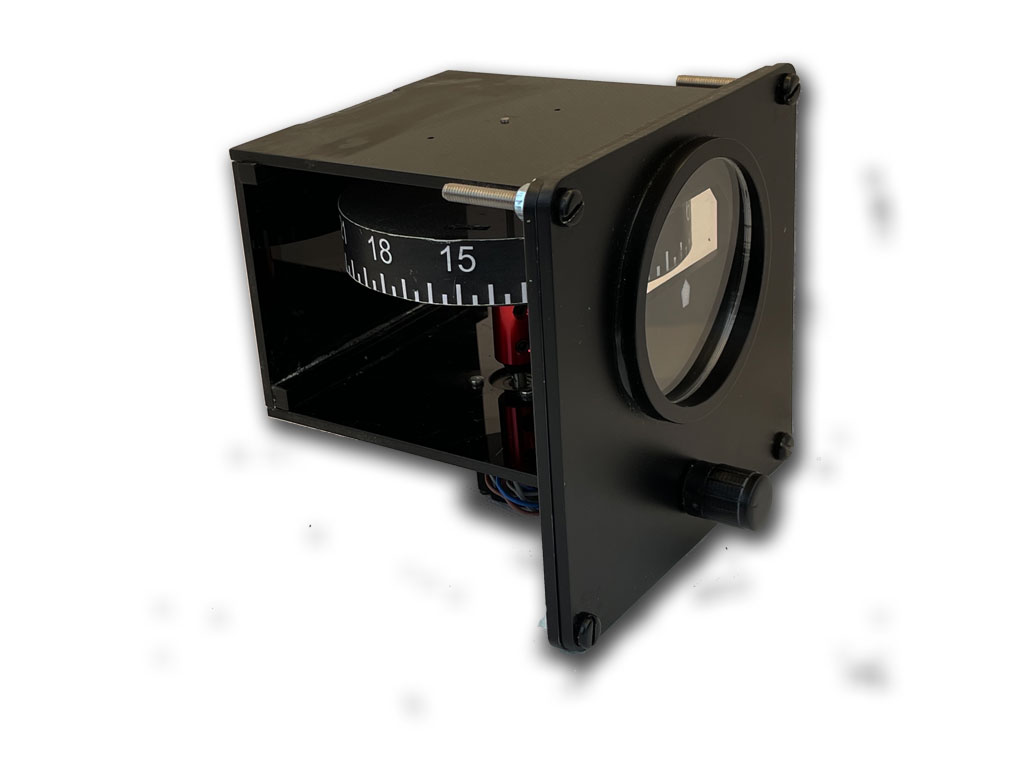

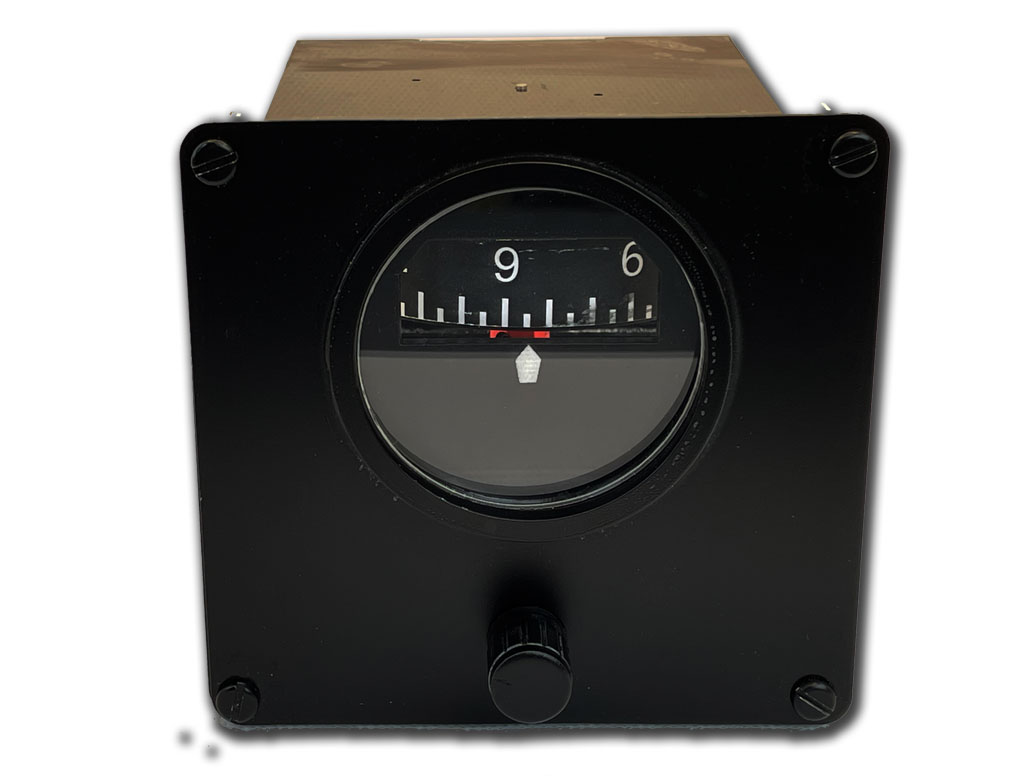

The Lancaster Simulator Directional Gyro Compass Gauge is a beautiful replica of the Lancaster Directional Gyro Compass gauge. It has a vintage look and a range from 0 to 360 degrees with a rotary knob to rotate compass card .
The needle movement is very smooth due to the use of stepper motors.
Physical characteristics:
height 120 mm
width 100 mm
depth 100 mm
weight 100 gr
mounting 4 screws
Power requirements:
power from Aces stepper module
Connection
6 pin connector flat cable (6 wires flat cable) requires 1 free ports on Aces Stepper Module.
You will need the Aces Stepper Module plus the Aces software to connect the gauge to the computer and a pokeys module.
