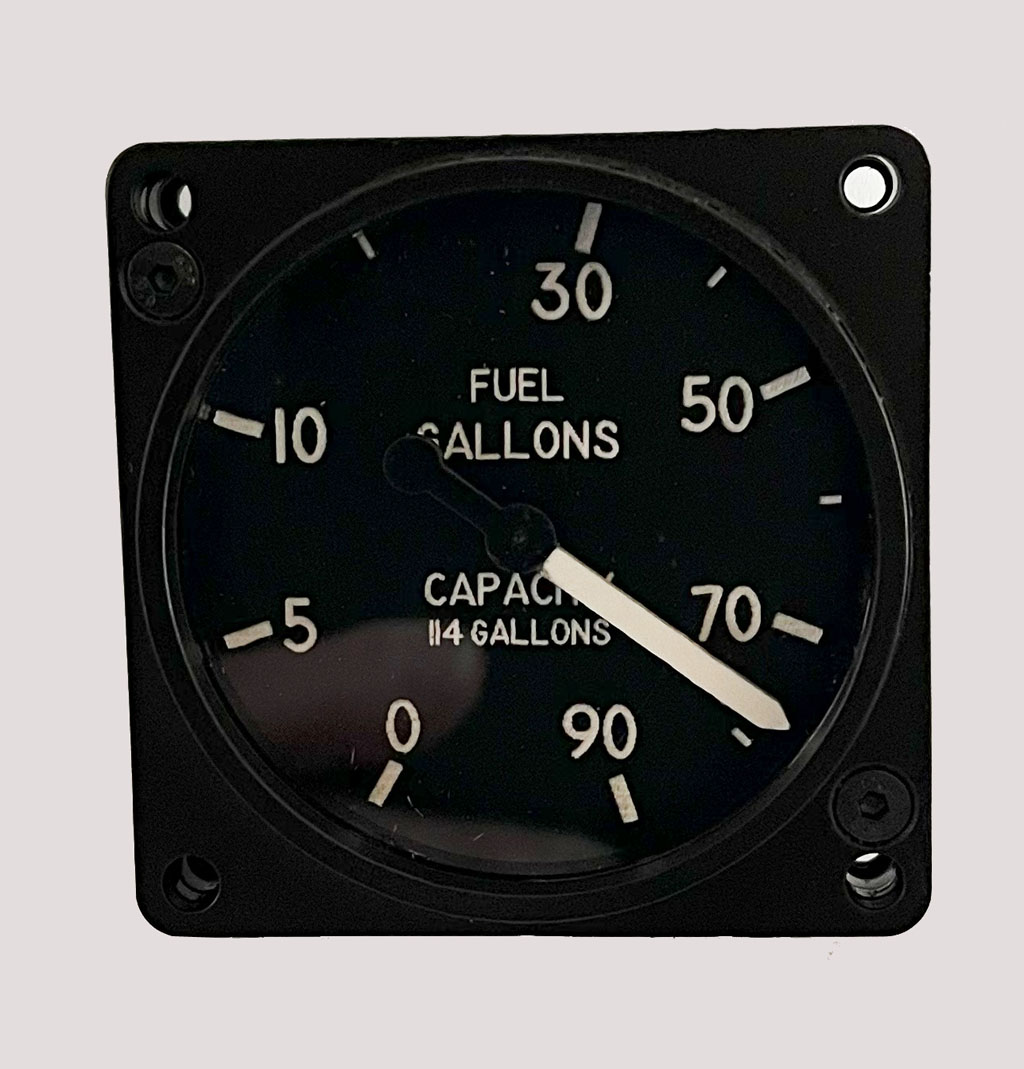

This Lancaster Simulator 90 gallon Fuel Gauge is a replica of the Lancaster Engineer’s Panel 90 gallon fuel gauge. It’s got a proper vintage look about it and registers pressure from 0 to 90 gallons.
The needle movement is dead smooth thanks to the stepper motors inside. This gauge comes fully assembled and tested, giving you lovely smooth readings because of that stepper motor tech.

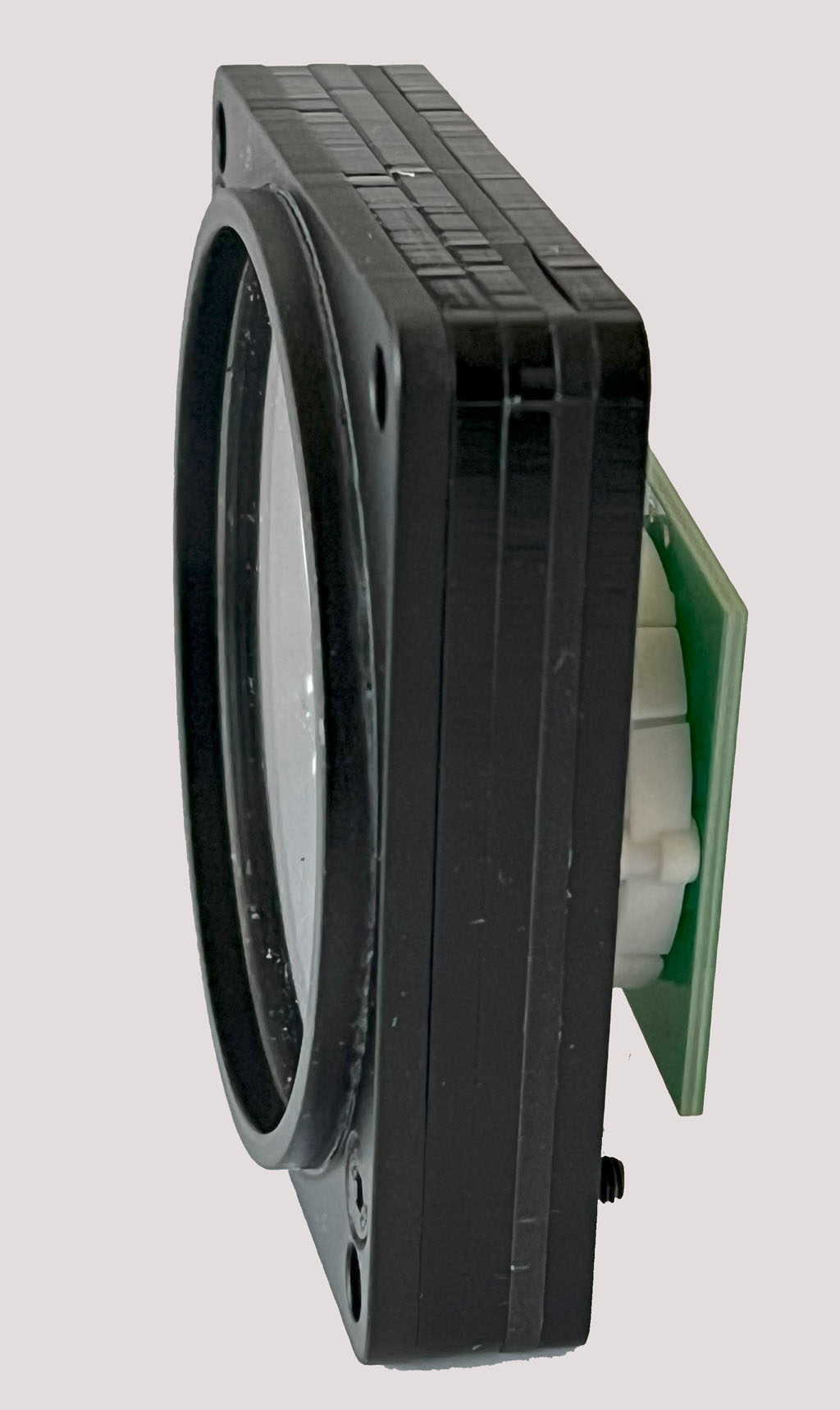

Physical Bits:
- Height: 72 mm
- Width: 72 mm
- Depth: 40 mm
- Weight: 55 grammes
- Mounting: Sorted with 4 screws
What it Needs to Run:
- Power comes straight from the Aces mini stepper module.
How it Plugs In:
- Needs one 4-pin connector flat cable (that’s a 4-wire flat cable), which’ll take up one spare port on your Aces Mini Stepper Module.
You’ll need the Aces Mini Stepper Module, plus the Aces software, to get this gauge talking to your computer.
This Gauge is not to be used in any real aircraft it is for simulator use only.
