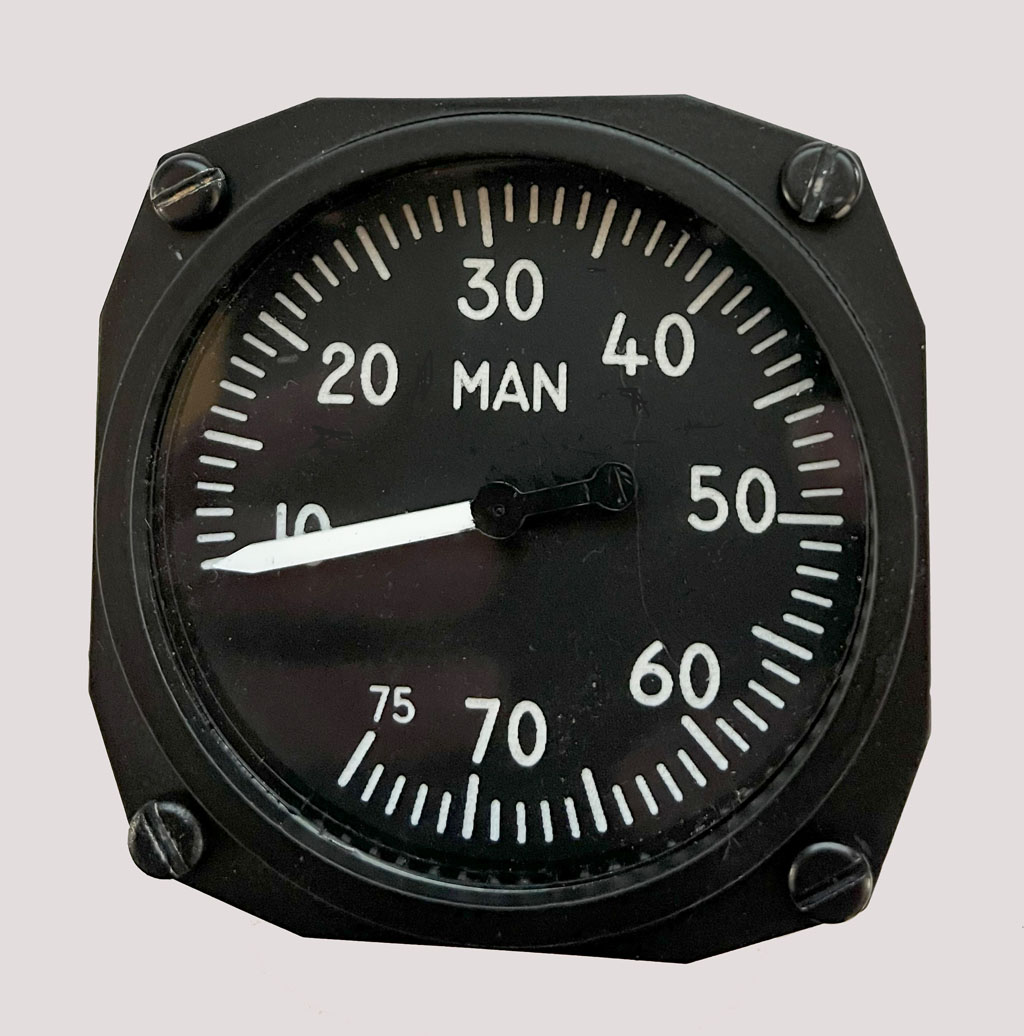

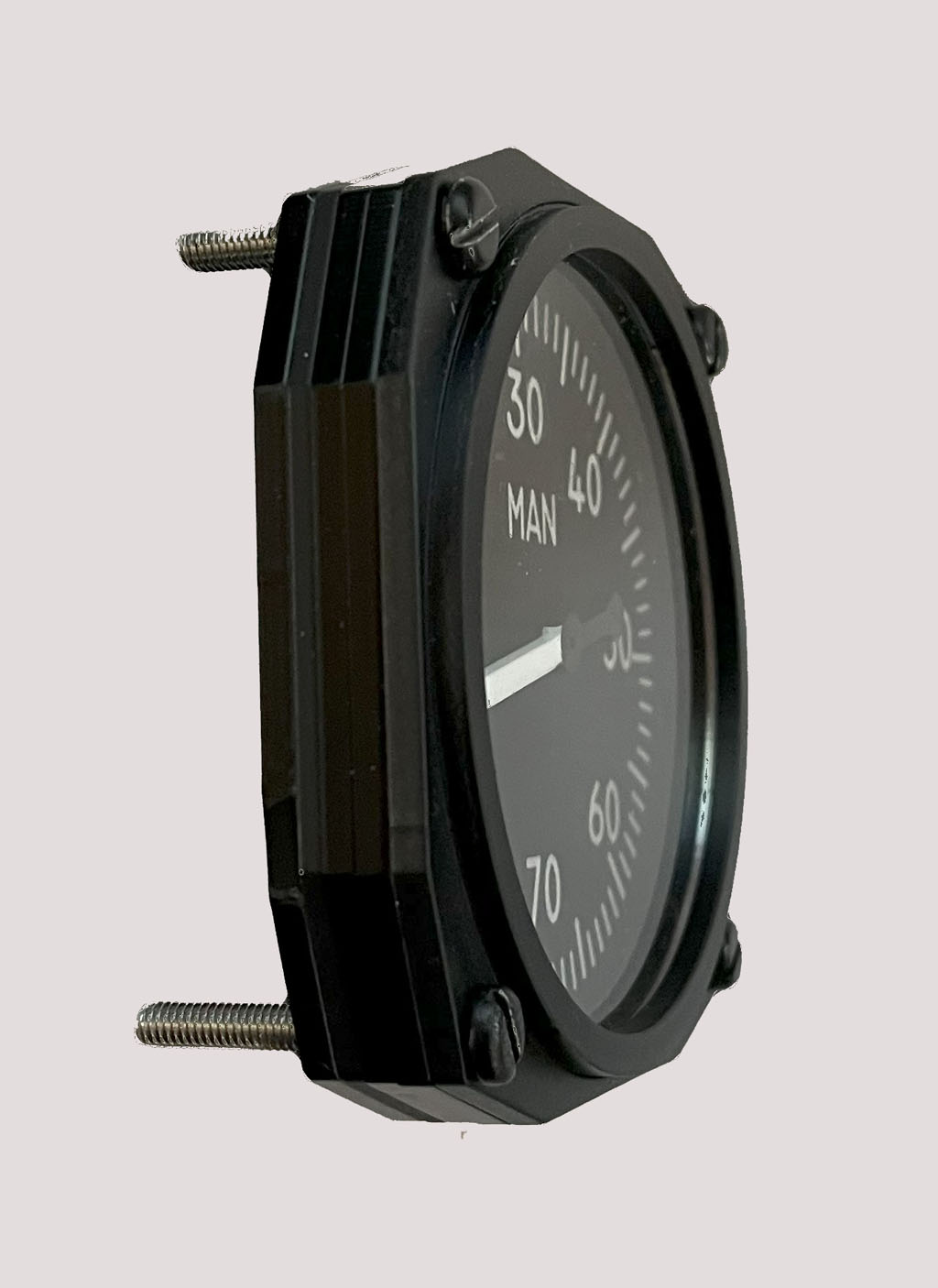

The P51 Simulator Manifold Pressure Gauge is a beautiful replica of the P51 Manifold Pressure Gauge . It has a vintage look and a range from 0 to 75 PSI. The needle movement is very smooth due to the use of stepper motors. This gauge is used to register the manifold pressure from 0 to 75psi for P51 engine. The gauge measures the exhaust gas pressure at the exhaust manifold of the engine. This is a direct indication of how much power the engine is giving. The gauge is completely assembled and tested and gives smooth indications thanks to stepper motor technology.

Physical characteristics:

height 81 mm
width 81 mm
depth 40 mm
weight 90gr
mounting 4 screws

Power requirements:
power from Aces mini stepper module

Connection
1 X 6 pin connector flat cable (6 wire flat cable) requires 1 free port on Aces Mini Stepper Module.

You will need the Aces Mini Stepper Module plus the Aces software to connect the gauge to the computer.

This Gauge is not to be used in any real aircraft it is for simulator use only.
